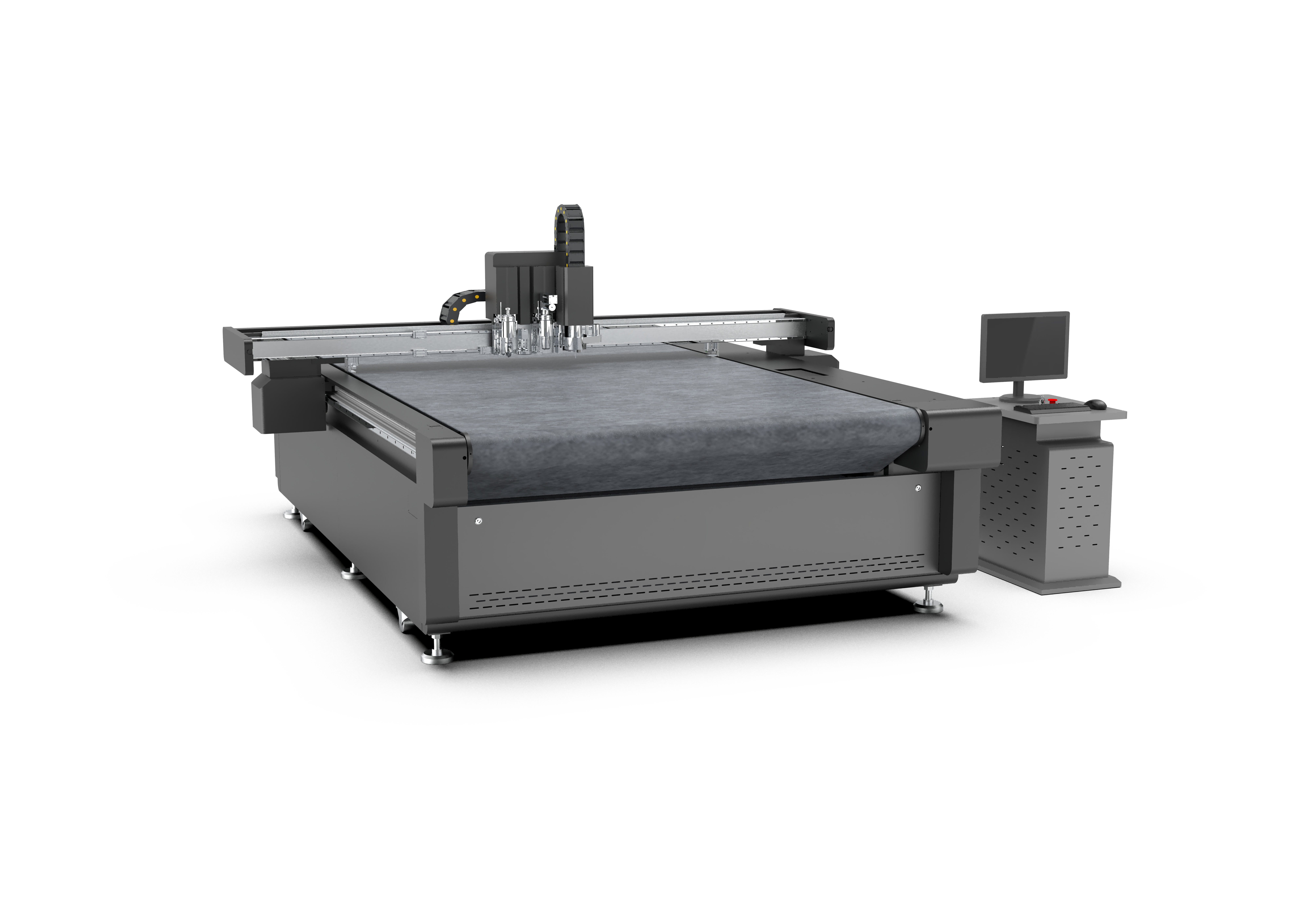

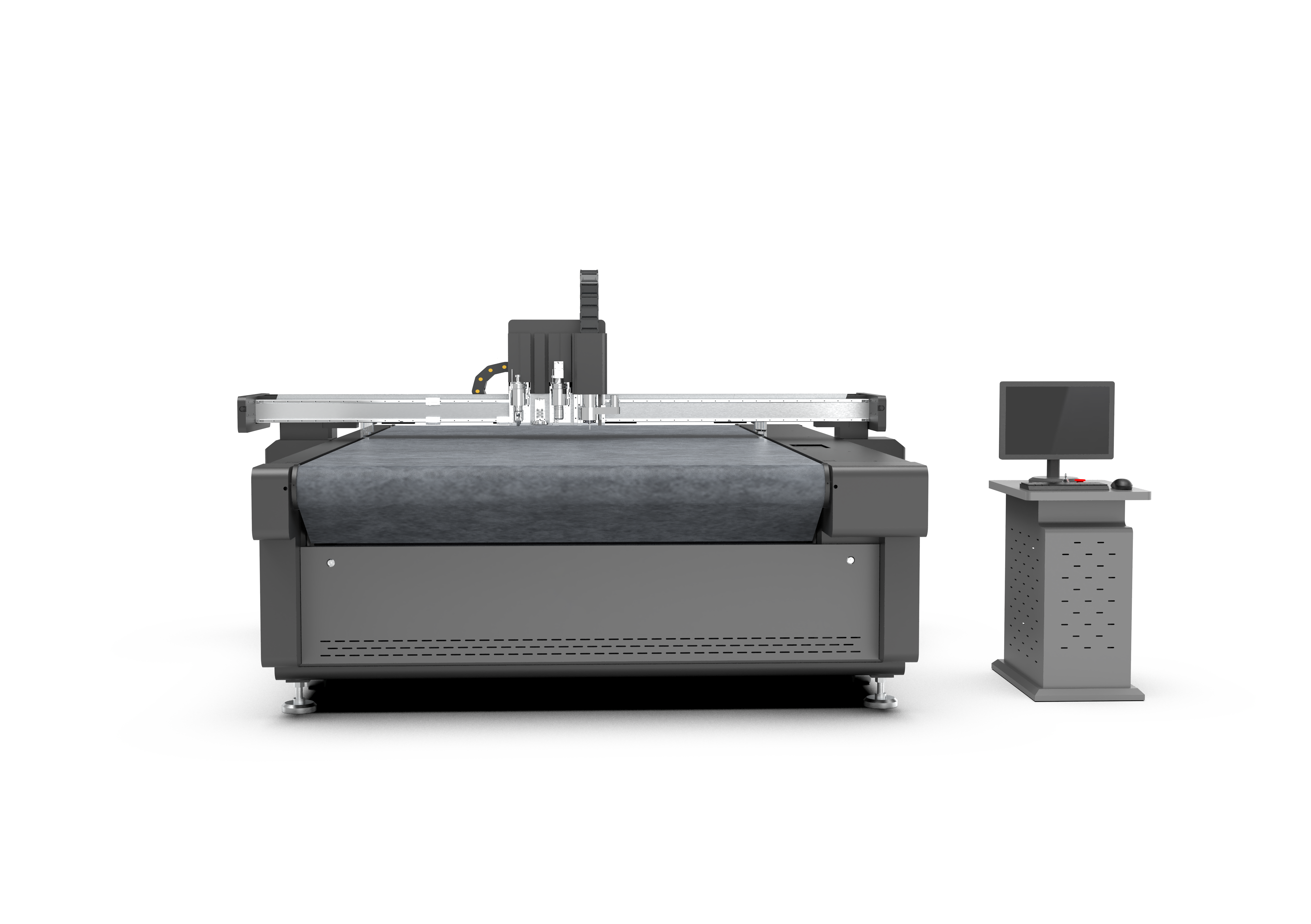

Intelligent High Speed Cutting Machine With ATC
Integrated Four-Tool Automatic Magazine Changer
It enables rapid automatic switching between different tools for complex machining tasks, while its enclosed structure effectively prevents dust contamination

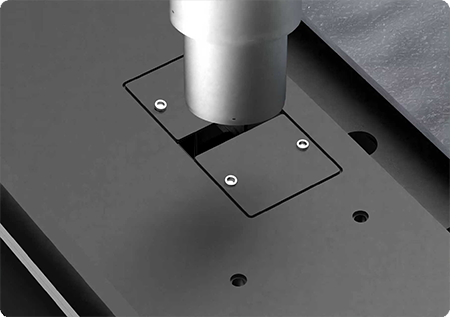

Built-in Laser Tool Setter
The system automatically adapts to material thickness variations to achieve precise cutting and table protection. Utilizing a high-precision tool setting probe, it automatically detects the lowest point of the material and sets the cutting depth accordingly, ensuring complete material penetration without damaging the protective underlay or worktable

Automatic Tool Setting
By marrying high-precision sensors with intelligent algorithms, the system achieves millisecond-level automatic detection and compensation of the tool tip position, enabling high-precision machining

 Sample application

ScreenShot_2025-10-30_132056_446

Product Features

  • Water-Cooled Tool-Changing Spindle
    Water-Cooled Tool-Changing Spindle

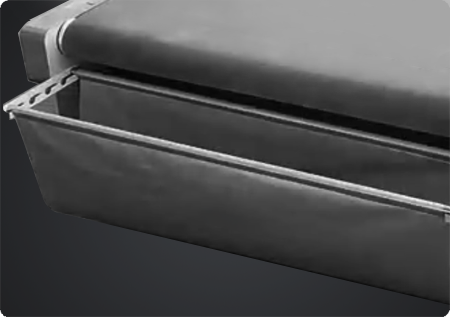

  • Material Catching Device
    Material Catching Device

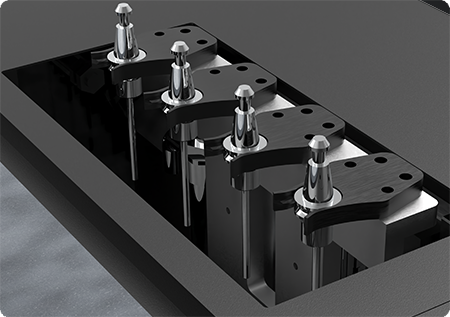

  • Integrated Four-Tool Automatic Magazine Changer
    Integrated Four-Tool Automatic Magazine Changer

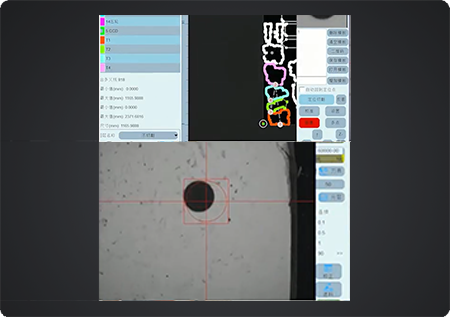

  • Full-Process CCD Tracking and Positioning
    Full-Process CCD Tracking and Positioning

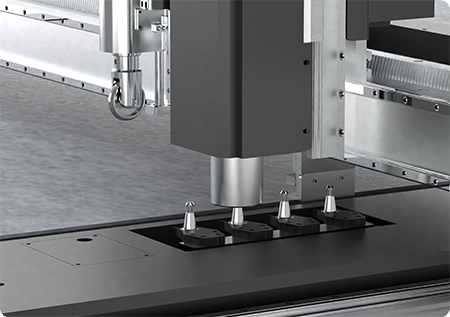

  • Built-in Laser Tool Setter
    Built-in Laser Tool Setter

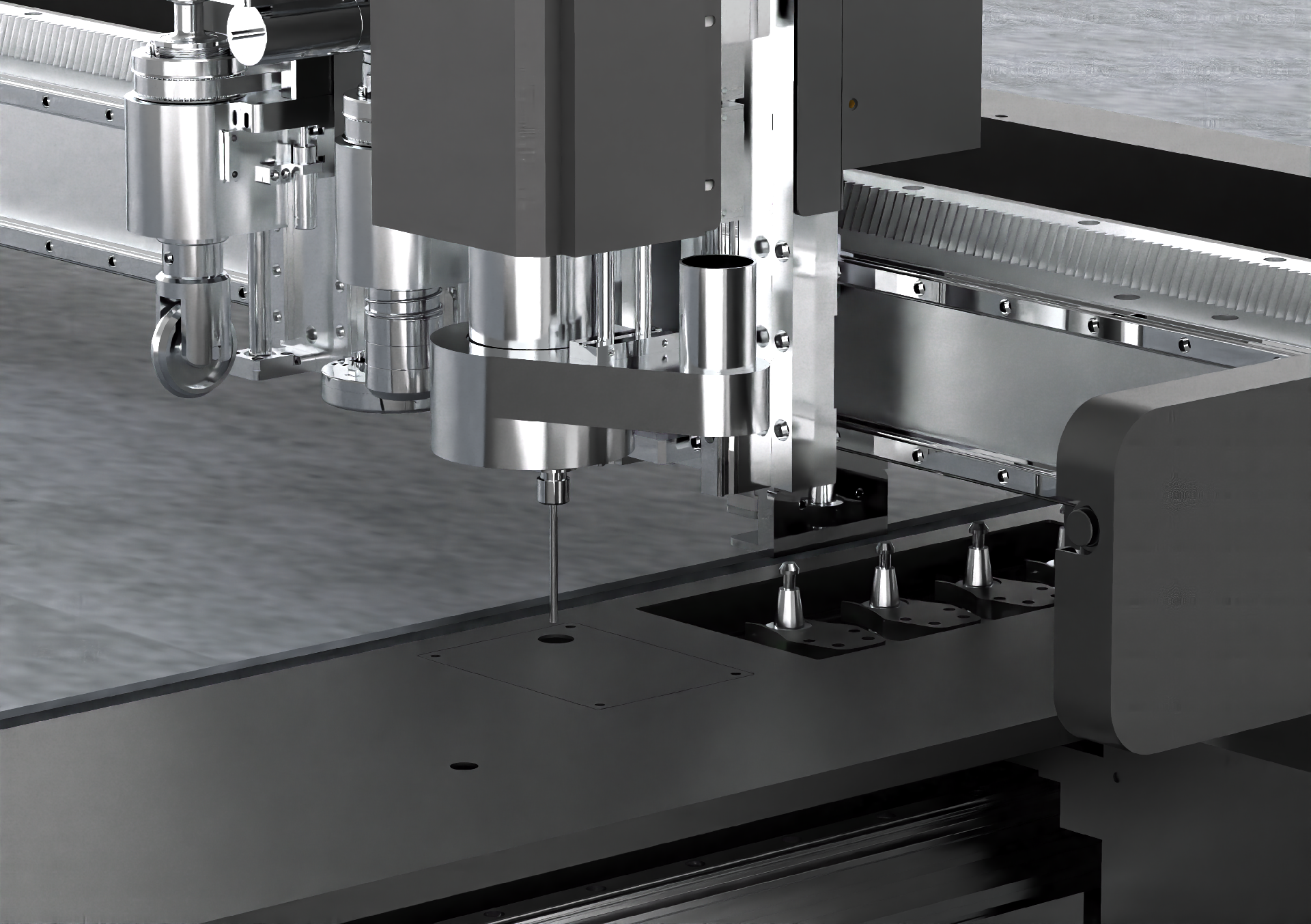

  • Automatic Tool Setting
    Automatic Tool Setting

   JinyuanCNC Factory Price

  • 15 years experience, professional selection guidanceDirect factory prices, high cost-performance ratio

  • Professional after-sales team, 24/7 service

  • Free technical solution

  • Sample test support

  • Factory visit support

  • Machine installation and training

  • Remote service support

  • Become our global distributor

Technical parameters

Model

JY-1625

Working Size(mm)

1600*2500mm

Max Engraving Speed

12000mm/min

Moving Speed

800-1500mm/s

Power supply voitage

220V/380V

Power Rating

7.5KW-11KW

Cutting speed

200-1200mm/s(Adjustable according to differentcutting )

Material fixation mode

Vacuum adsorption

Industry Applications

Advertising & Signage Production

Interior decoration Industry

Advertising and Crafts

Sheet metal cutting Industry

Metal processing industry

Steel Construction Industry

Fitness equipment industry

Flexible materials Industry
